Fix 6025 Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock

This FIX multipoint door lock features 2 Hooks, 1 Deadbolt & 1 Latch.

Fix multipoint locks from Sweden are unique and the 6025 series is operated by euro cylinder, rather than Swedish oval, as in the case of the 2025 series.

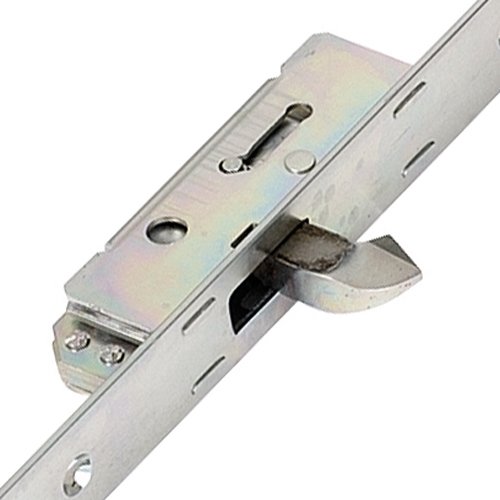

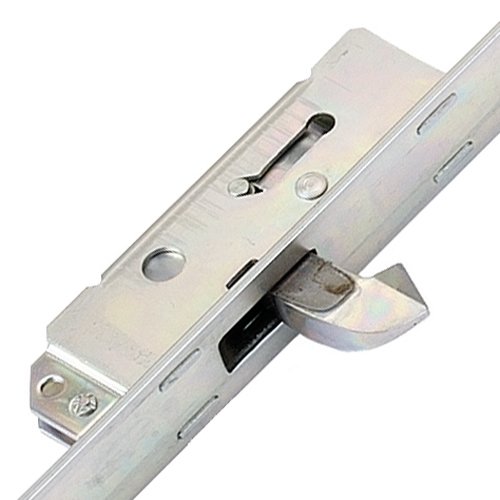

These locks feature 2 hooks with 1600mm between them, but there have been many variations of this lock, so some work to the door may be required when replacing a lock with different hook positions.

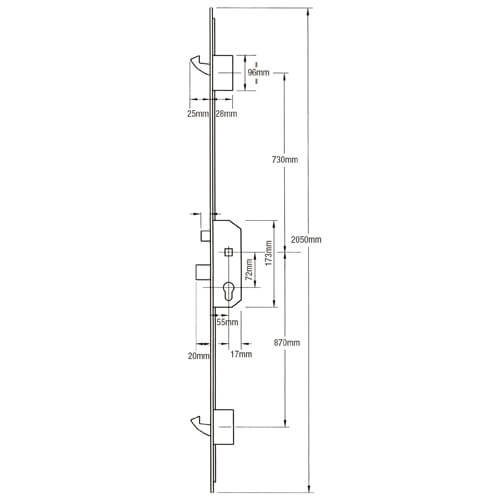

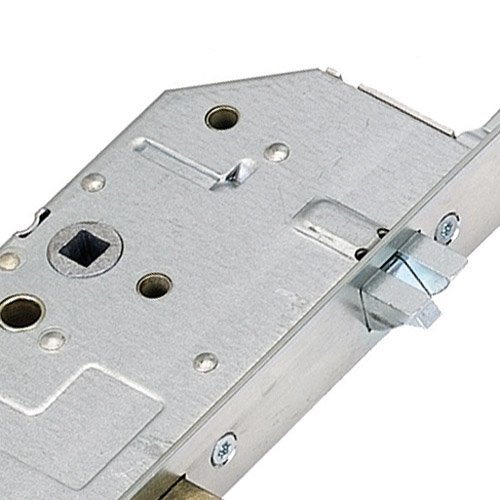

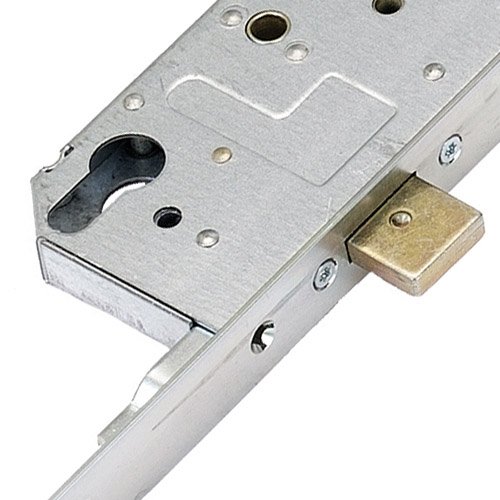

The lock features 72mm centres and the case measures 173mm by 55mm. The locks are only available with a 55mm backset and a flat 25mm faceplate with square ends.

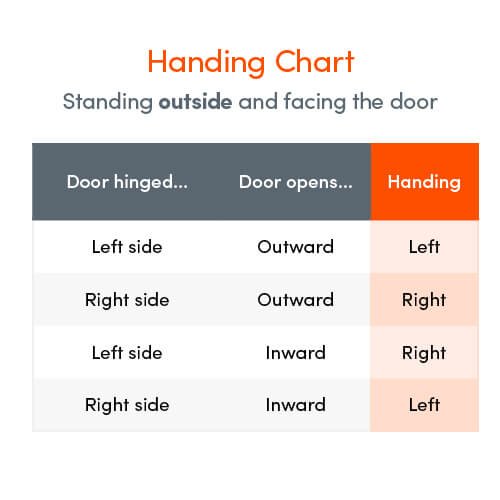

Its important to note that these locks are handed and cannot be reversed on site. Please use the handing table to determine the hand of lock that you require.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for Fix 6025 multipoint door locks, including keeps, spindles, handles and accessories.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
