This part is discontinued and is no longer available.

However, part: V-MPLSS35 is a potential alternative. We’d recommend the VERSA V-MPLSS35 as the replacement. The Schuring has awkwardly placed inner rollers, so they are difficult to replace with a full length lock.

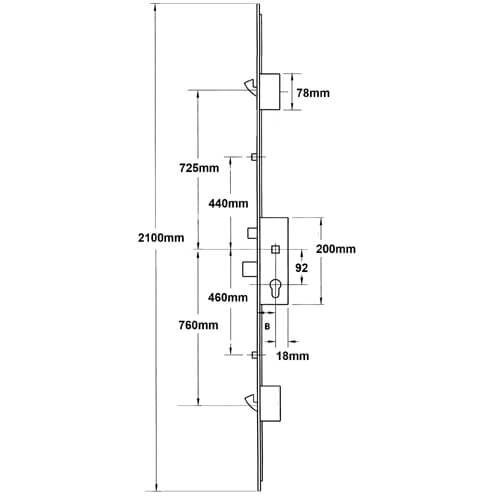

This Schuring 2 hook, 2 roller lock features classic 1485mm locking point centres.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

Latch Reversal: Push in the latch and undo screw in back of lock case. Then push latch forward, twist and release to reverse.

You may find this lock used as an UPVC door lock or an aluminium door lock.

Backset

35mm
Faceplate

Flat 16mm – Square Ends
Operation

Lift Lever
