T&T Latch Deadbolt 4 Mushroom Cams Lift lever Multipoint Door Lock

29 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

This part is discontinued and is no longer available.

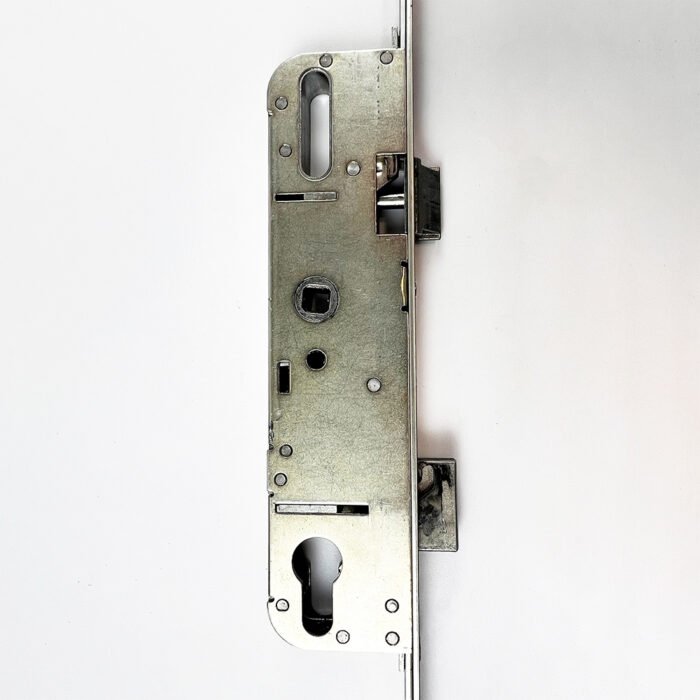

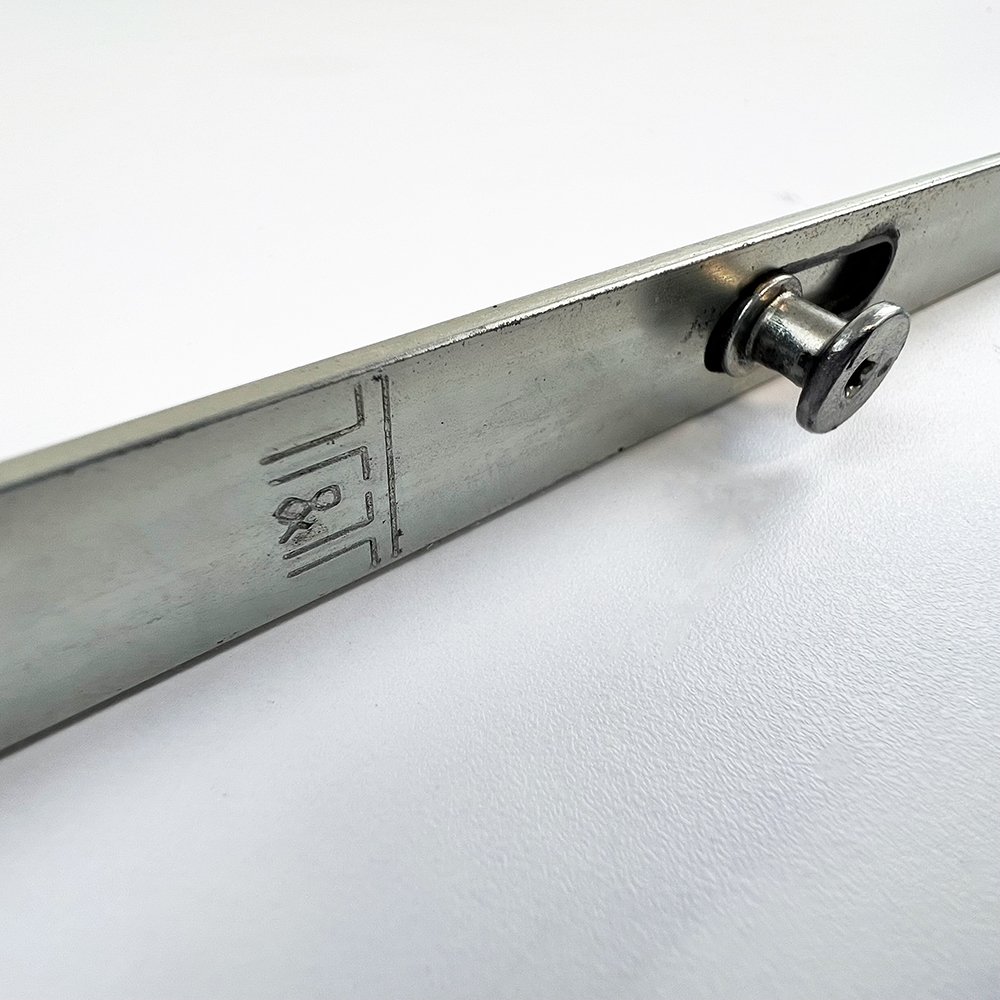

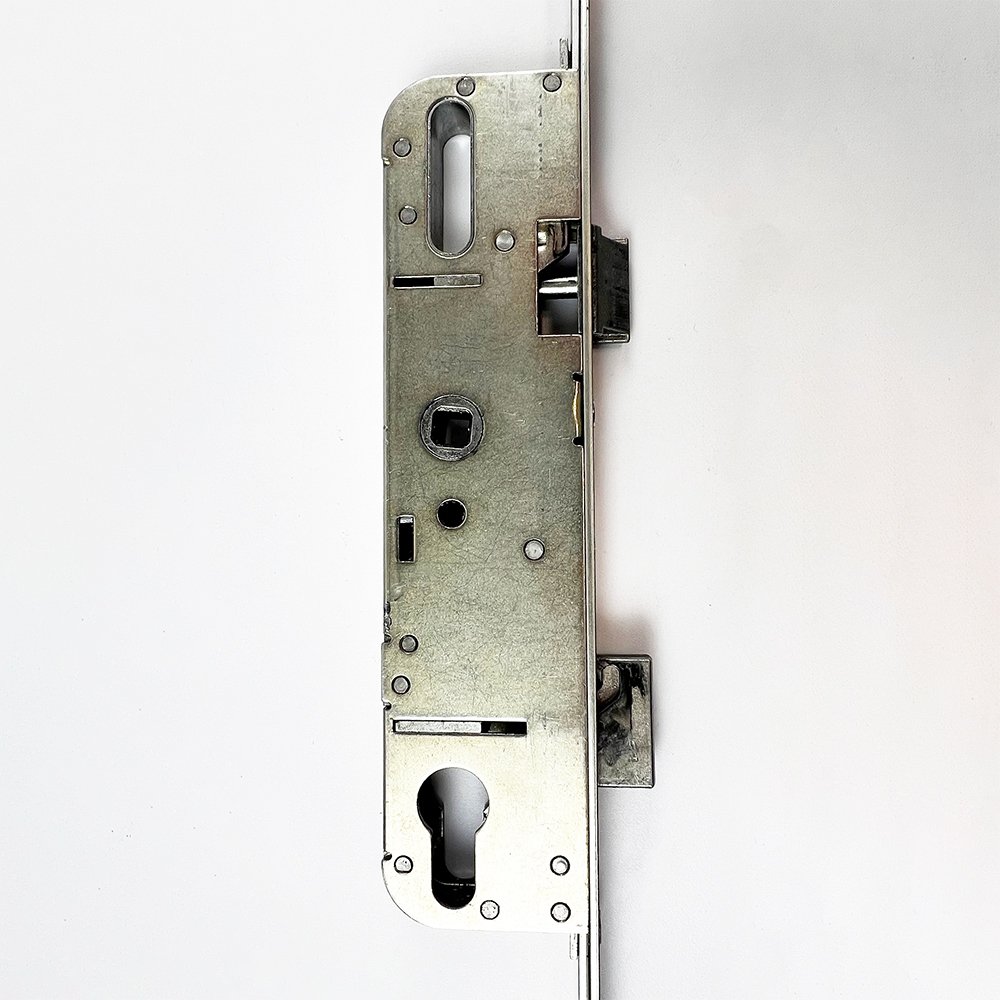

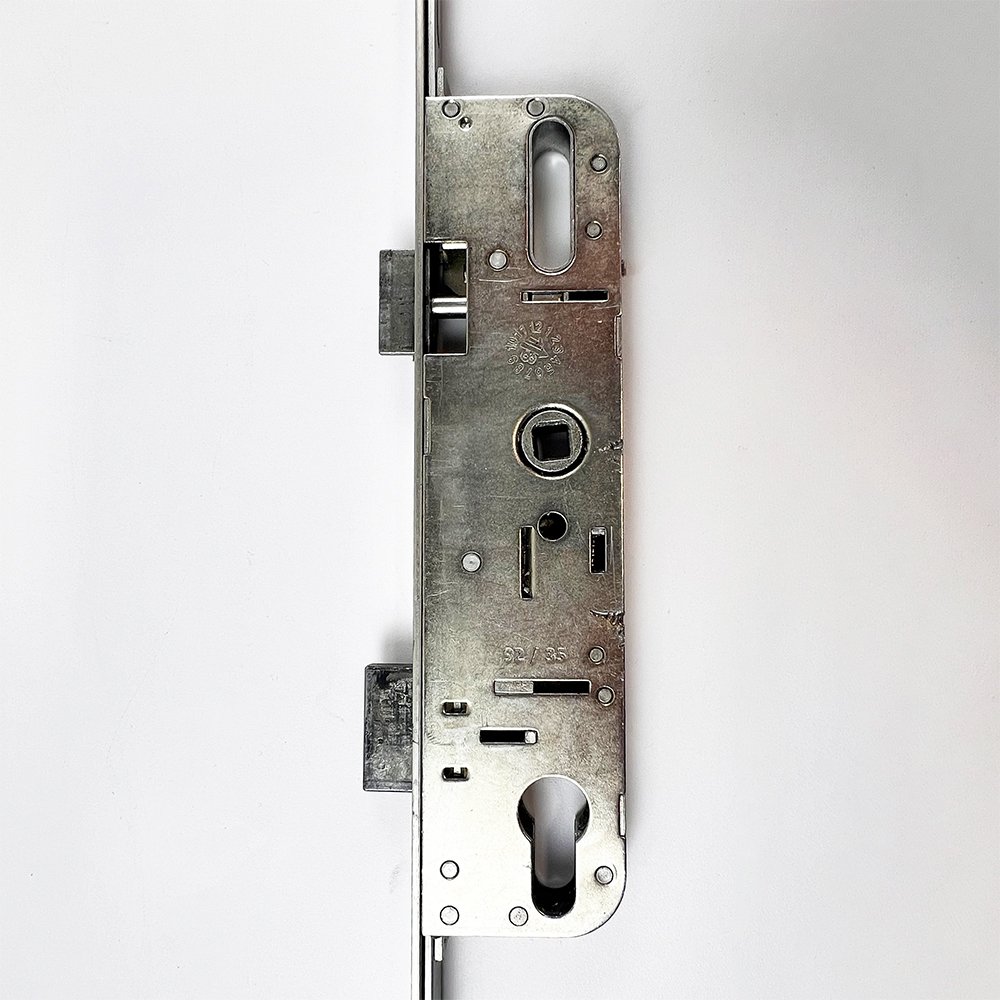

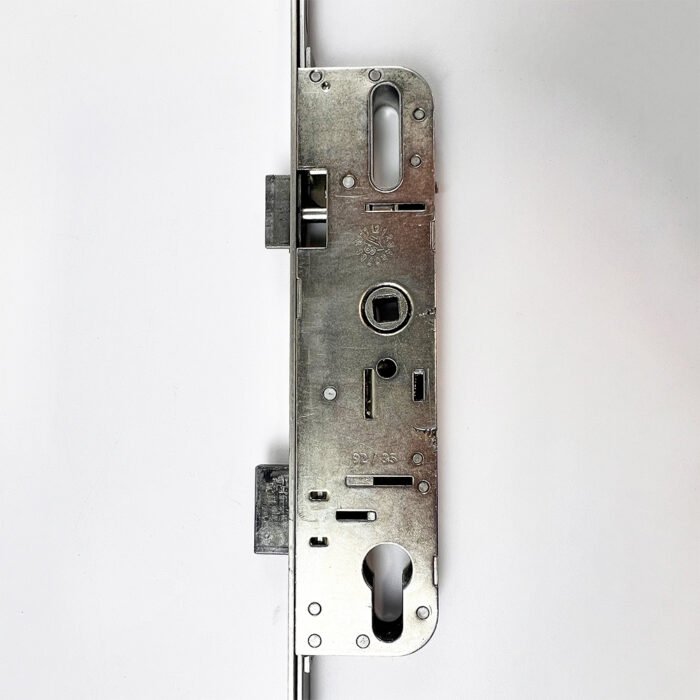

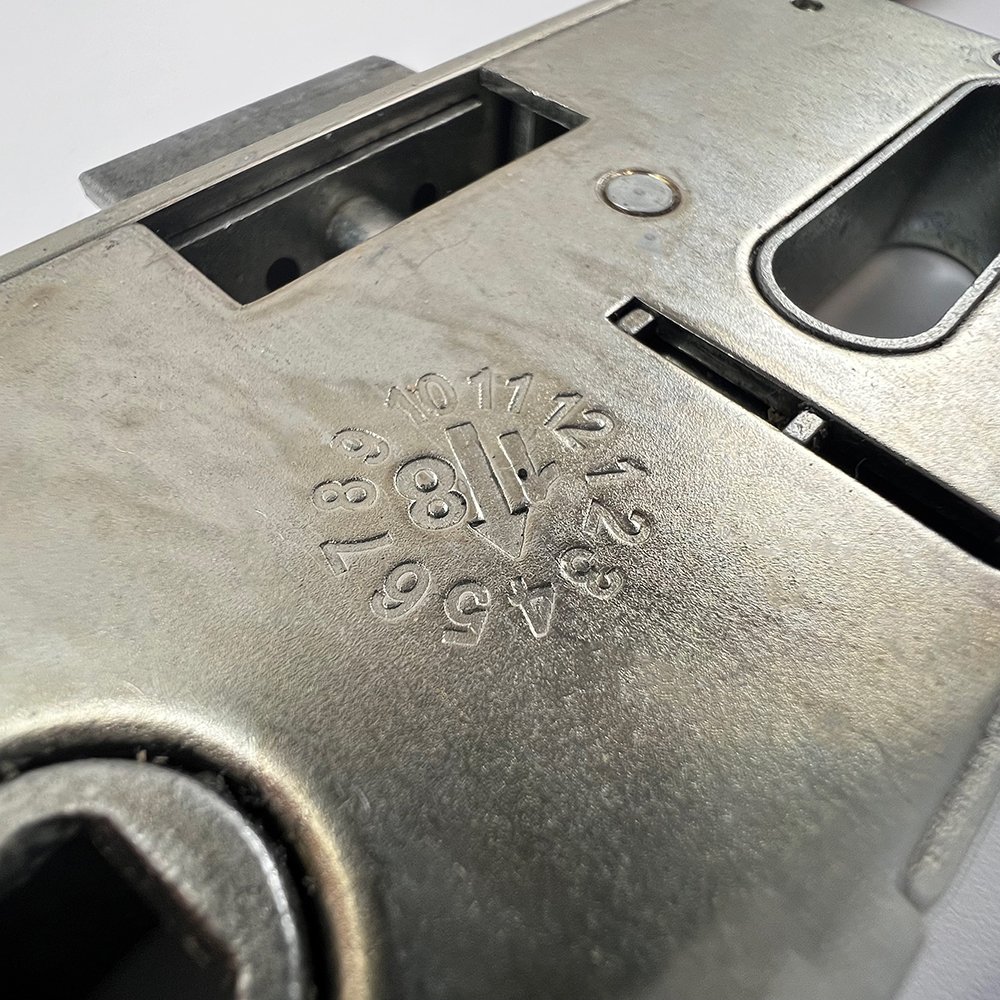

This T&T multipoint door lock features 4 Mushrooms, 1 Deadbolt & 1 Latch. It is commonly found fitted to doors supplied by B&Q or Homebase, which is currently unavailable in the UK.

A suitable alternative is the TSS 4 roller multipoint door lock, this would require the fitting of new keeps

Operation: Lift Lever

To lock the door:

Lift the handle upward to engage the locking points.
Lock the locking points and main deadbolt by turning the key. To unlock the door
Unlock the system by turning the key.
Push the handle downwards to disengage the locking points and retract the latch.

discontinued	yes
Backset	35mm
centres-pz	92mm
Faceplate	Flat 16mm
Spindle Size	8mm
mushrooms	4
deadbolts	1
latch	1
main-gearbox	latch-and-deadbolt
Operation	Lift Lever
spindle	single-8mm
1-2-or-3-piece	1
Distance Between Inner Locking Points	580mm
Distance Between Outer Locking Points	1570mm
height	2000mm
Brand	drox-brand
