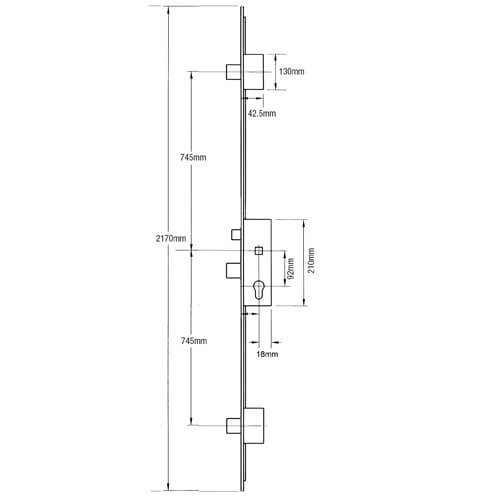

Weru Latch 3 Deadbolts Key Wind Multipoint Door Lock – Option 1 (top deadbolt to spindle = 745mm)

Add to wishlist
28 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

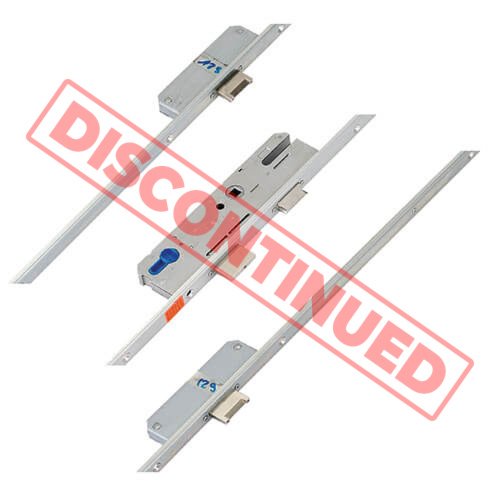

This part is discontinued and is no longer available.

However, part: SOB323DBU22 is a potential alternative. Modification required
22mm face rather than 24mm
New sobinco keeps required as now swing bolts rather than standard deadbolts
Deadbolt keeps will need moving

Operation: Key Wind

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Turn the key to throw and engage or “wind” out the locking points.

To unlock the door

1. Turn the key to unlock the door by “unwinding” the locking points.

2. A further quarter turn of the key will retract the latch.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .

Backset

40mm
Faceplate

U-Rail 24mm
Operation

Key Wind
