Bowater Genuine Multipoint Gearbox Double Spindle

8 products sold in last 10 hours
Selling fast! Over 7 people have in their cart
Add to wishlist
28 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

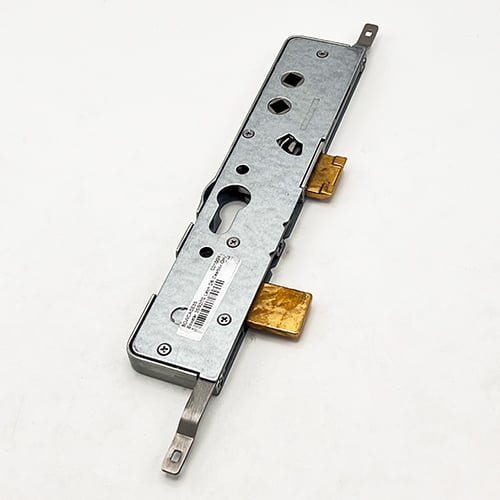

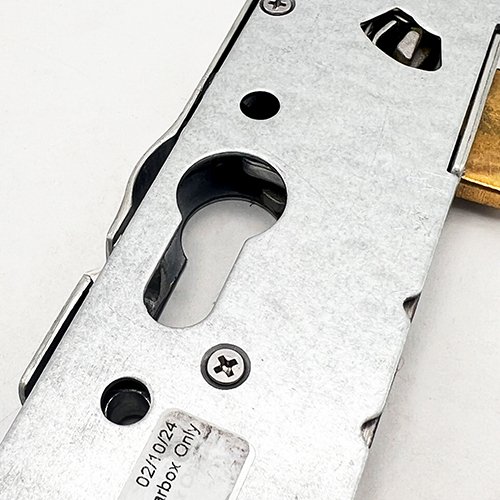

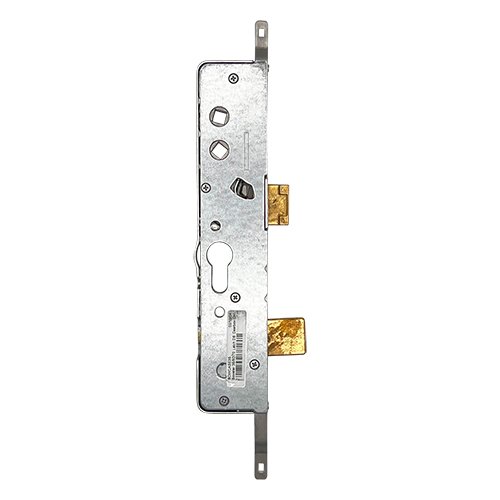

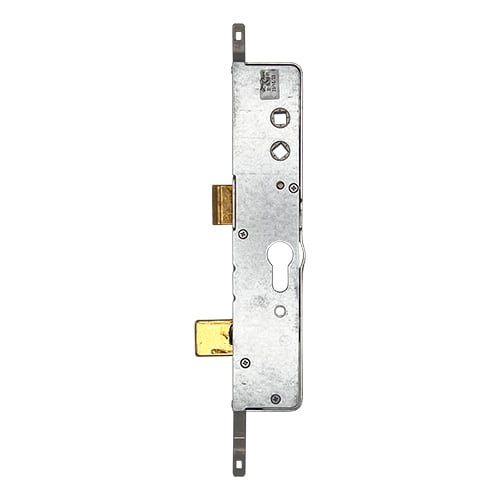

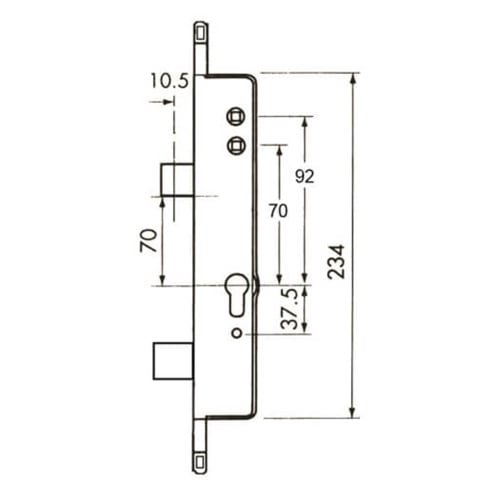

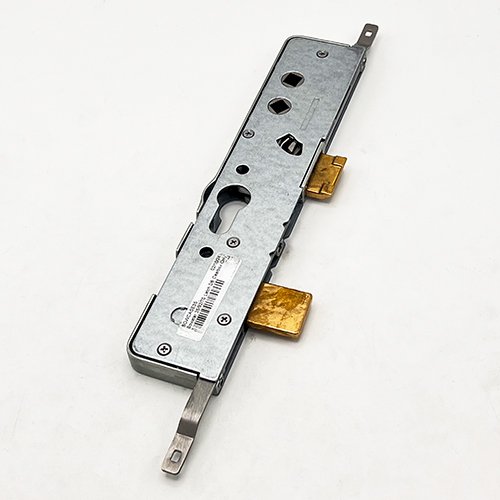

This Bowater gearbox has a 35mm backset with an unusual 92/70mm double spindle mechanism.

The case measures 234mm high by 52mm and self-tapping screws are required to fit it.

Please note that early versions of this gearbox use different screw positions and are not interchangeable.

Operation: Lift Lever

Latch reversal: Unscrew the lock case with the latch facing left, remove the flat positioning plate, remove the latch clip, remove the latch retaining spring, reverse the latch then reassemble

>

Backset

35mm
centres-pz

92mm-70mm
Width

52mm
height

234mm
main-gearbox

latch-and-deadbolt
Operation

Lift Lever
spindle

double-8mm
Type

Gearbox
Handing

reversible
cylinder-type

euro
genuine-copy

genuine
Brand

bowater
