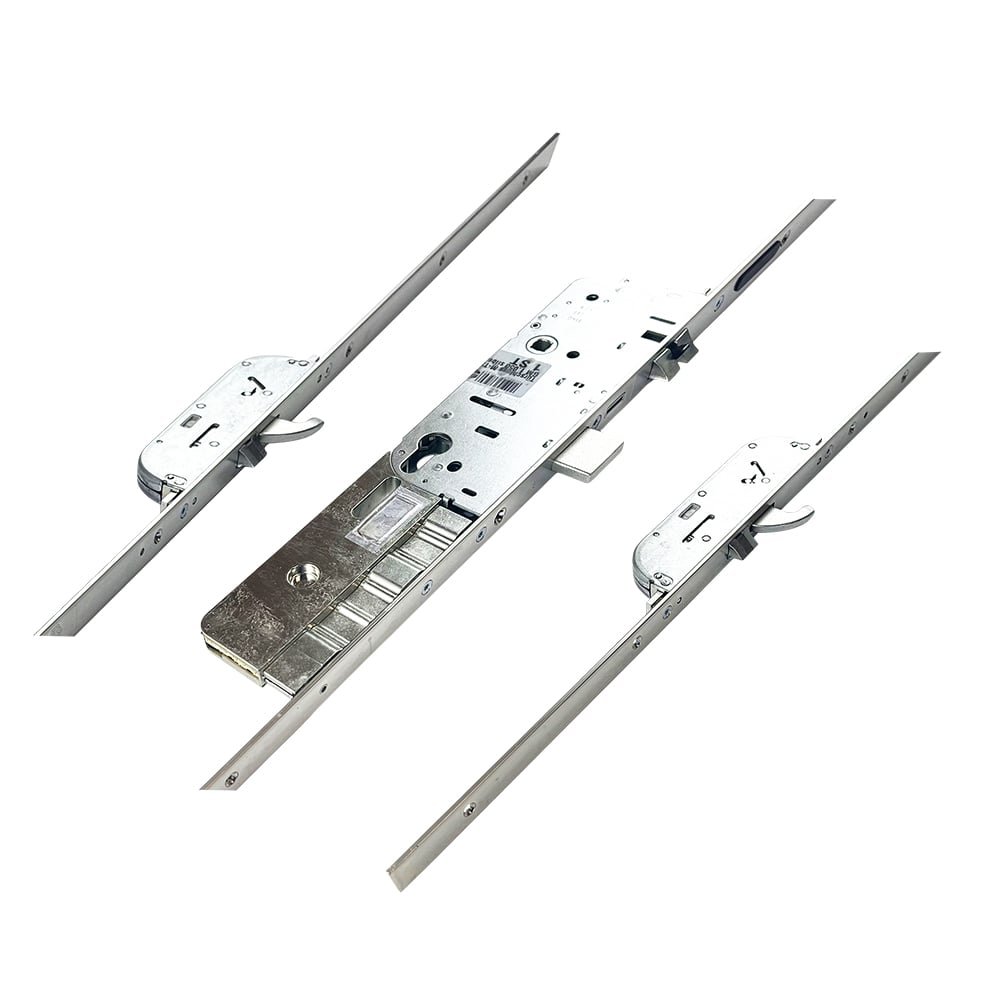

Maco M-TS Latch & Deadbolt 2 Hooks 2 Anti Lift Bolts Flat 20mm Faceplate Electric Multipoint Door Lock

The Maco M-TS Electric Multipoint Door Lock is a high security, electronically operated locking system designed to offer reliable performance for modern entrance doors. This model features 2 Hooks, 2 Anti-Lift Bolts, 1 Deadbolt, and 1 Latch, mounted on a 20mm flat faceplate with square ends. With a total height of 2200mm, its 45mm and 55 mm backsets are mainly suitable for PVC, composite, and timber entrance doors where a slimmer faceplate profile is required.

This M-TS lock combines mechanical strength with electric latch retraction, allowing integration with intercoms, access control systems, or smart home setups. The lock retains full mechanical locking through its hooks, anti-lift bolts, and central deadbolt, ensuring complete security even during power loss.

This M-TS lock is identified by its 1piece strip, 20mm flat faceplate, and the distinctive pairing of hooks and anti-lift bolts along the locking strip. The system uses a single 8mm spindle with non-handed operation, making it suitable for both left and right opening doors without modification. The M-TS lock is available with a backset of 45mm or 55mm’s.

Locking Points & Security Features

This M-TS model includes:

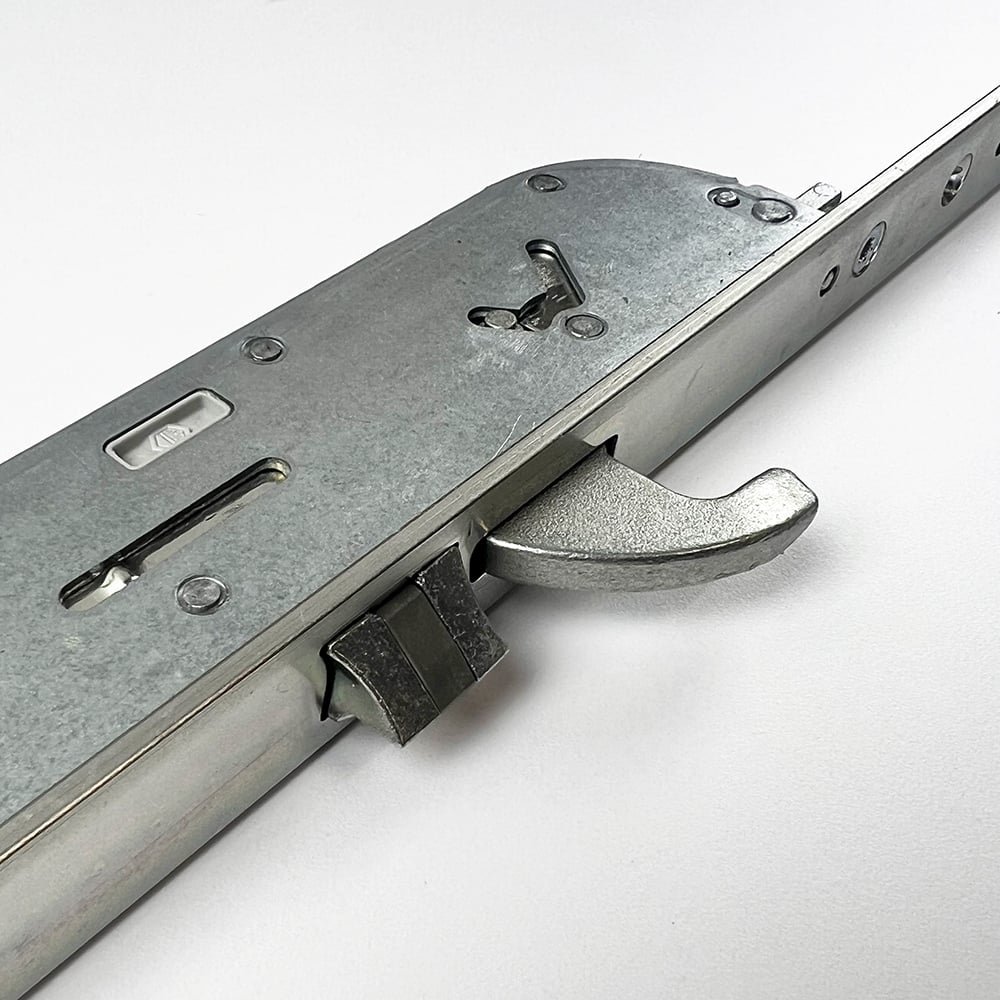

• 2 Uni directional Hooks. These engage firmly into their keeps to compress the door against the frame and resist forced separation.
• 2 Anti-Lift Bolts positioned near the hooks, they prevent vertical lifting or jamming of the door.

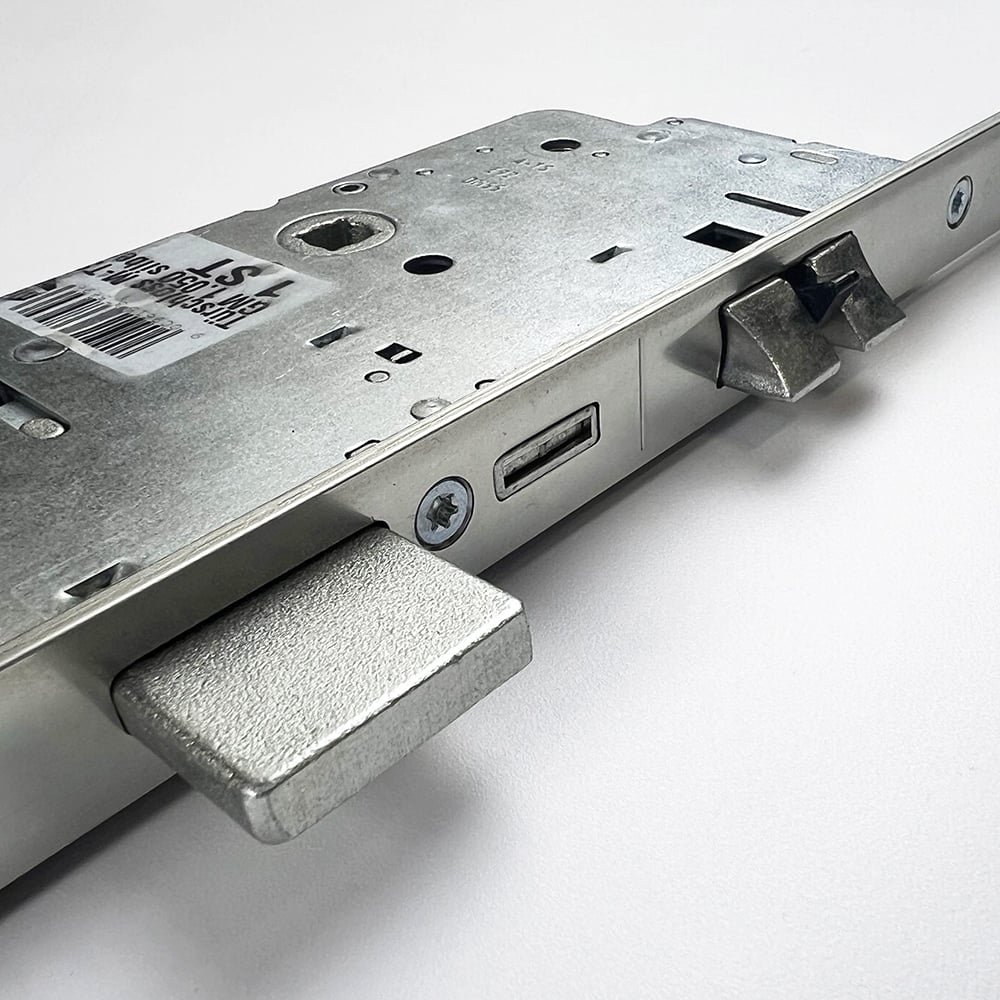

• 1 Central Deadbolt & Latch. The deadbolt provides the primary mechanical lock, while the latch retracts electrically for hands free or remote entry.

Please note, anti-lift bolts require specific compatible keeps due to their proximity to the hooks, offering improved protection against physical attack.
