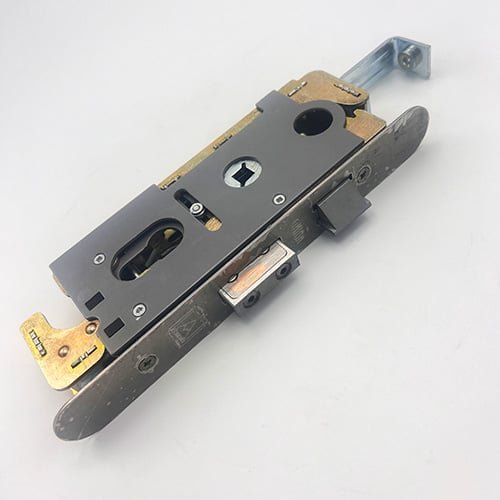

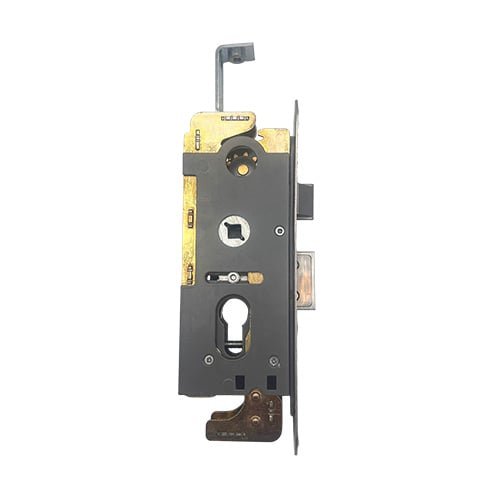

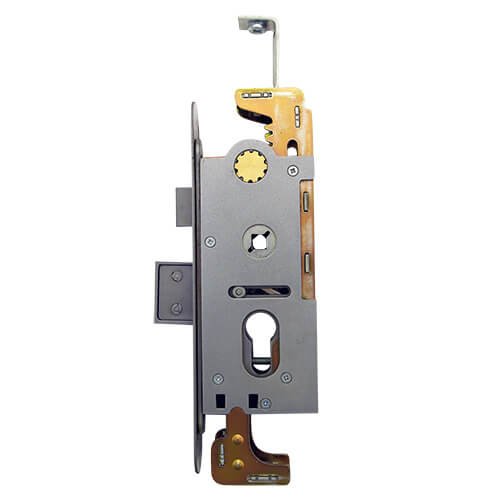

This Union L22174 Everest multipoint gearbox is supplied with a 210mm x 30mm faceplate. Strike plate, fixings and shootbolt kits are no longer available so the existing shootbolts cannot be reused. Alternatively, the case must be operated as a deadbolt only.

Operation: Lift lever or split spindle

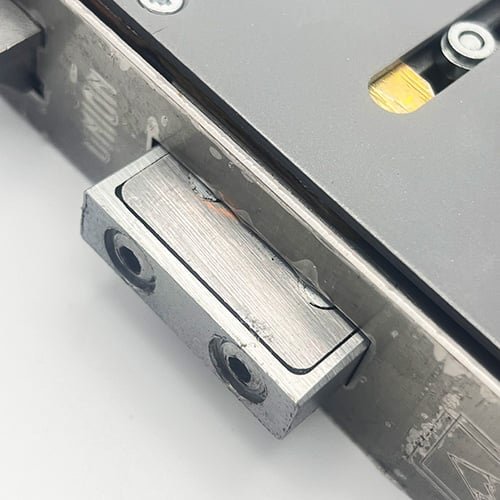

Latch reversal: Push the latch clear of the faceplate, twist the latch to reverse, and release.



To lock the door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

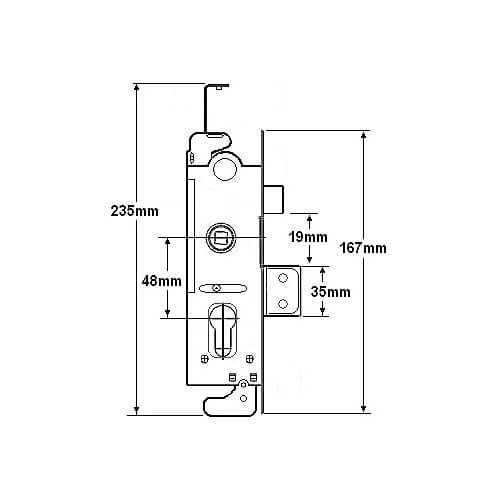

Backset

38mm
centres-pz

48mm
Width

68mm
height

140mm
main-gearbox

latch-and-deadbolt
Operation

Lift Lever Or Split Spindle Nightlatch

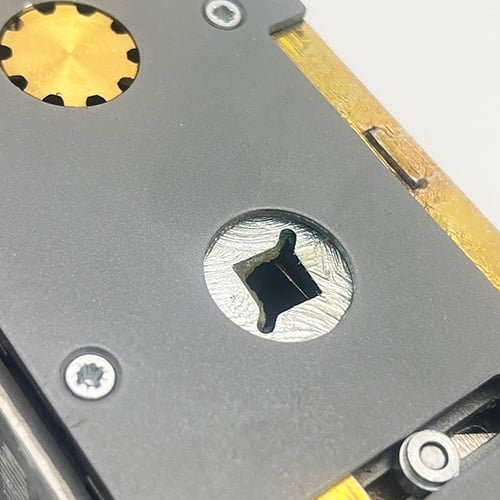

spindle

split-8mm
Type

Gearbox
Handing

not-handed
cylinder-type

euro
genuine-copy

genuine
Packaging

Single
Brand

union
